Description
Split & One Piece Cement & PVC Wall Sleeves
Wall penetration seal, wall sleeve and mounting caps supplied as complete kits, for easy and reliable wall penetration of service pipes and cables.
200The proven wall-penetration system made of a wall sleeve and 4 pipes Pressio® wall seals is now also available as a complete kit. In addition, there are two mounting caps to close the wall sleeve during the casting process.
Our PVC or fibre cement wall sleeves will shape a perfect wall opening. The sleeves provide a special surface on the outside with grooving to ensure the bond with the wall cement.

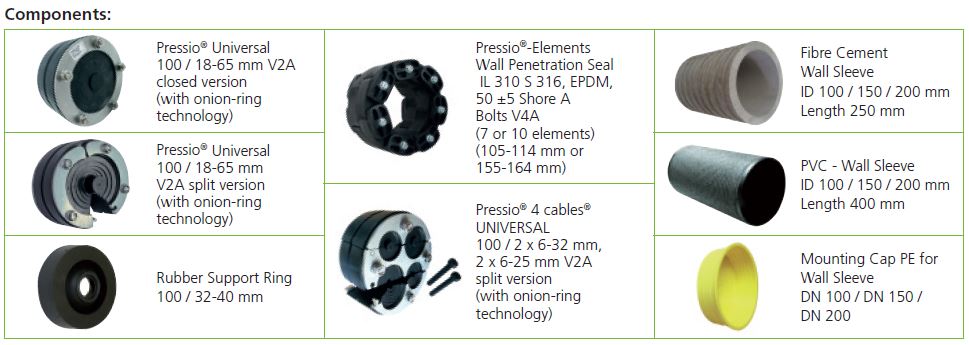

An optimised seal to the pipe or cable is provided by one of the following versions of our 4 pipes Pressio® wall pene-tration seals. Technical data and material properties of seals can be found on the individual technical datasheets- Pressio®-rings wall penetration seals 4 pipes- Wall penetration seals Pressio® 4 cables® – Pressio®-Elements wall penetration seals 4 pipesComponents:
Wall sleeves, fiber cement, plastic, steel
The wall sleeves serve in combination with our Pressio and Pressio-Elements Seals to penetrate carrier pipes of any material (copper, steel, cast iron or plastic) through walls, ceilings and floors. They form a perfect wall opening for the seals, so an optimum sealing is guaranteed.

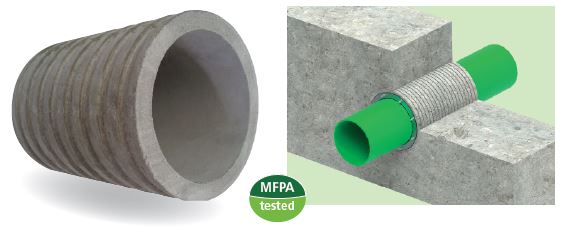

Wall sleeve of asbestos-free fibre cement
- Colour light grey
- Grooves outside all around
- Smooth inside walls
The sleeve which consists of concrete and glass fibre is water pressure tight, non-flammable, corrosion resistant and electrically insulating. They are extremely firm, which means they can be coated and perfectly bonded to concrete so that it is possible to cast into concrete or into a wall. For the use in concrete tanks or containers, the wall sleeve can be coated. A watertight fitting with mortar in a wall breakthrough is also possible.
